Atlas 15000 Lb- Capacity Overhead 2-Post Lift
$2,229.99
Description

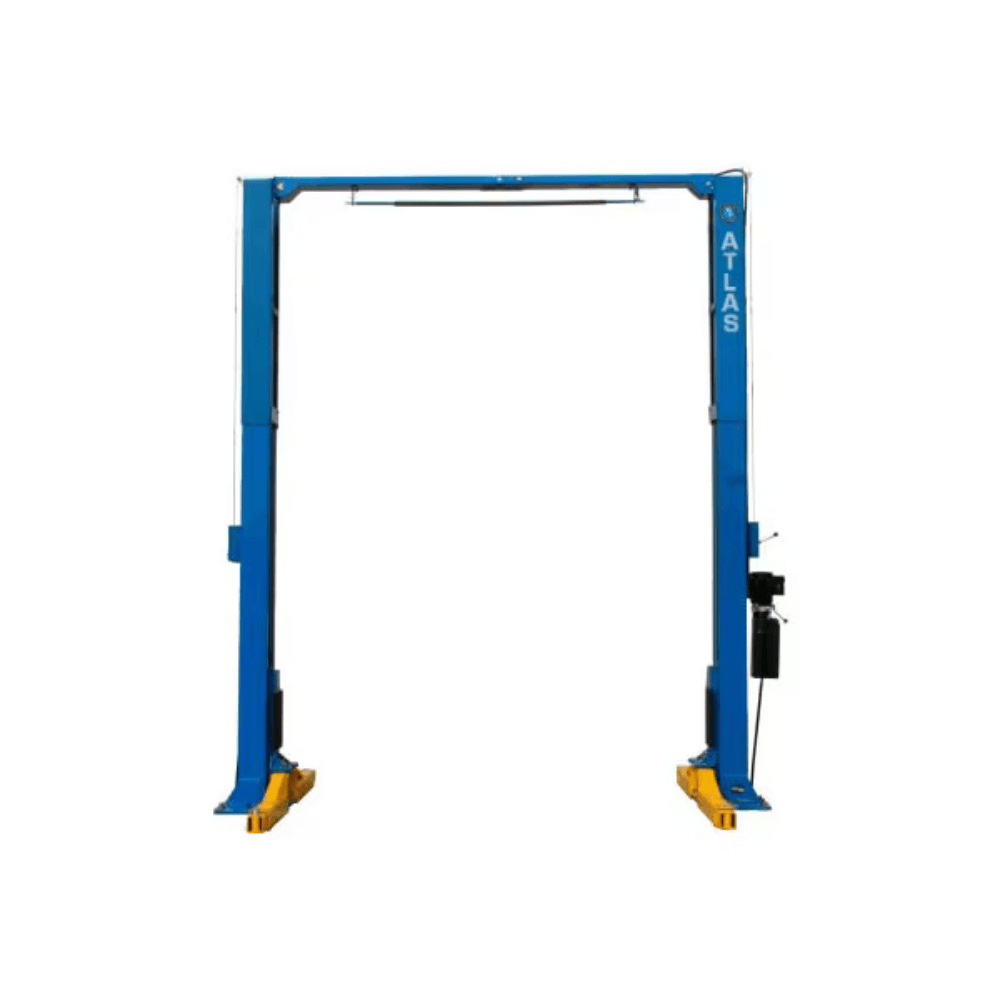

Atlas 15000 LB Capacity Overhead Two-Post Lift

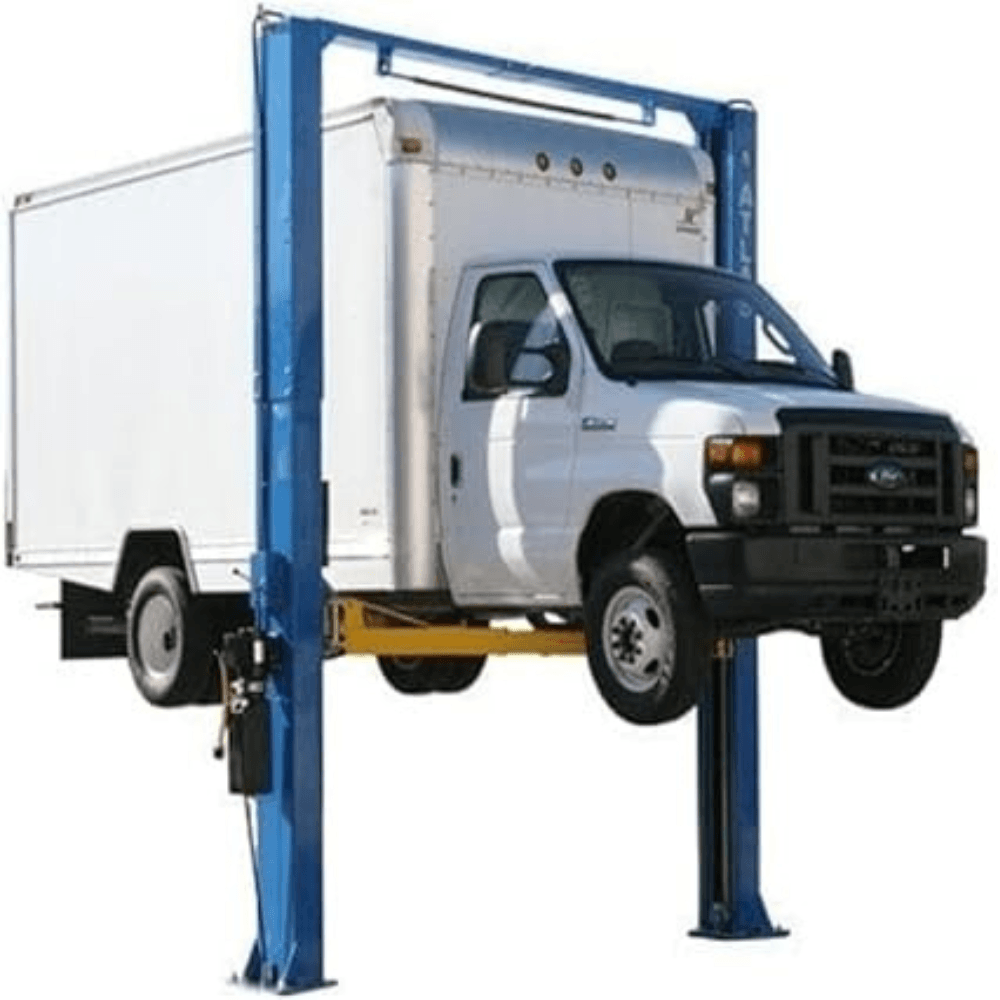

The Atlas 15000 LB Overhead Two-Post Lift is a heavy-duty, commercial-grade lift designed for extra tall and extra wide vehicle servicing. With a 15,000 lb. lifting capacity, this lift is perfect for large trucks, vans, and heavy-duty vehicles in professional automotive repair shops.
Its adjustable height settings (165″, 177″, or 150″ with extra cables) make it adaptable for various shop layouts, while its symmetric arms, direct-drive cylinders, and automatic arm restraints ensure efficiency, safety, and durability.
Key Features & Benefits
- 15,000 lb. Lifting Capacity – Handles large trucks, SUVs, and heavy-duty vehicles.
- Extra Tall & Extra Wide Design – Provides ample clearance for oversized vehicles.
- Adjustable Height Settings –
- Standard: 165″ (13′ 9″) or 177″ (14′ 9″).
- Special Low Height: 150″ (12′ 6″) (Requires purchase of extra cables).
- Symmetric Arms – Offers even weight distribution for secure lifting.

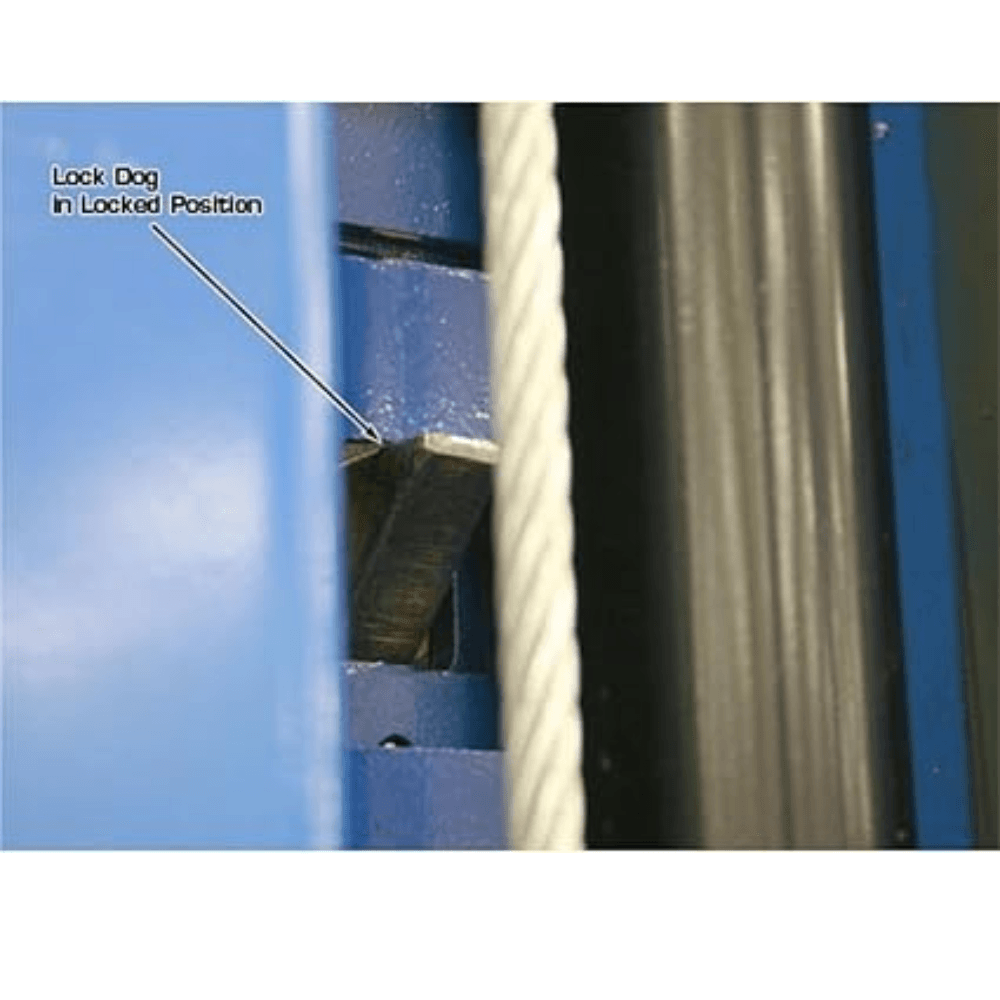

- Automatic Arm Restraints – Ensures arms stay locked in place during lifting.
- “Padded” Shut-Off Bar – Prevents vehicle damage from excessive lifting height.
- Door Guards on Carriages – Protects vehicle doors from scratches or dents.

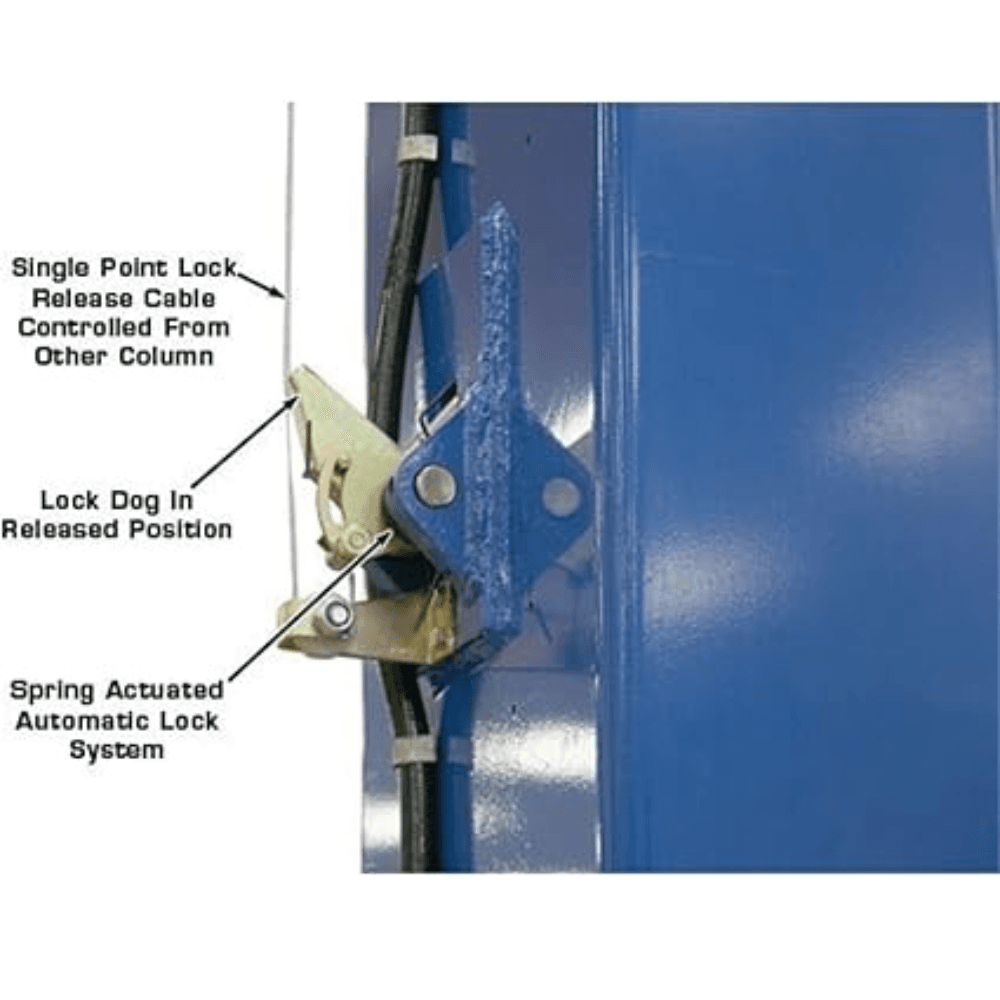

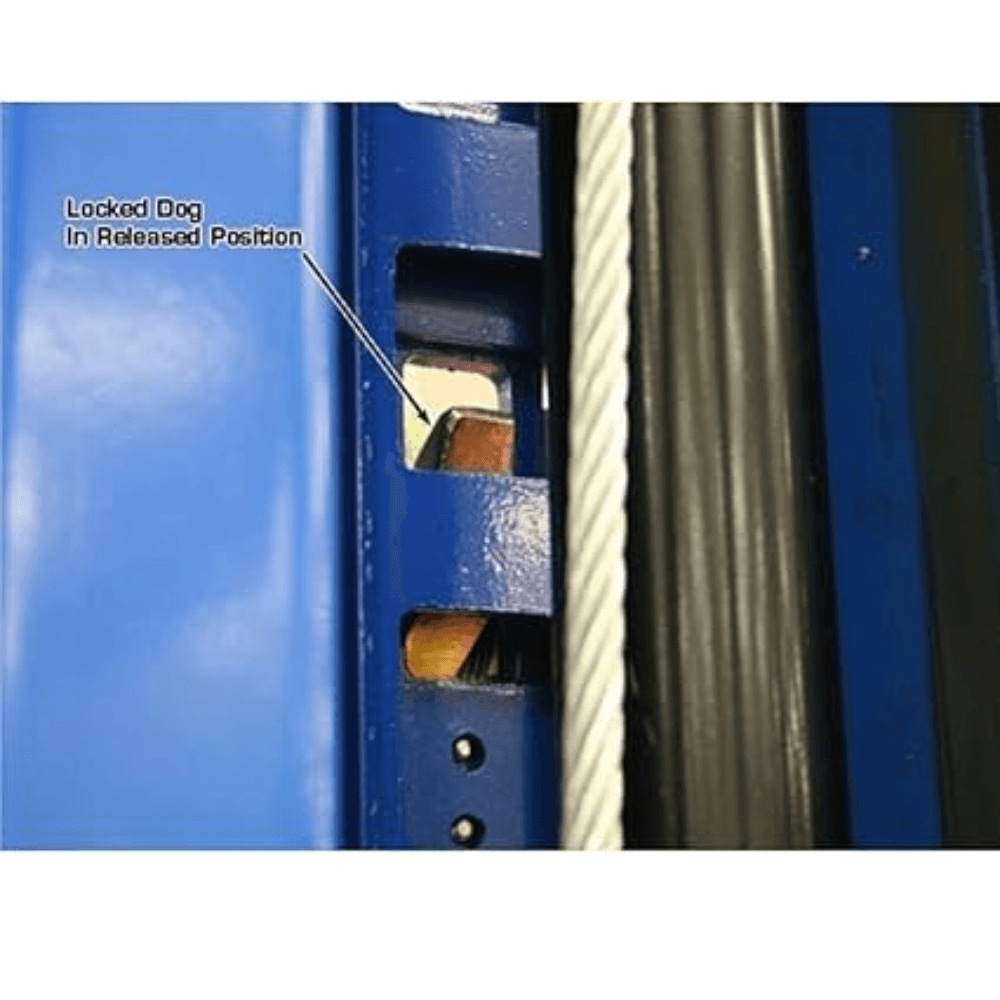

- Single Point Lock Release – Simplifies operation by unlocking both columns simultaneously.

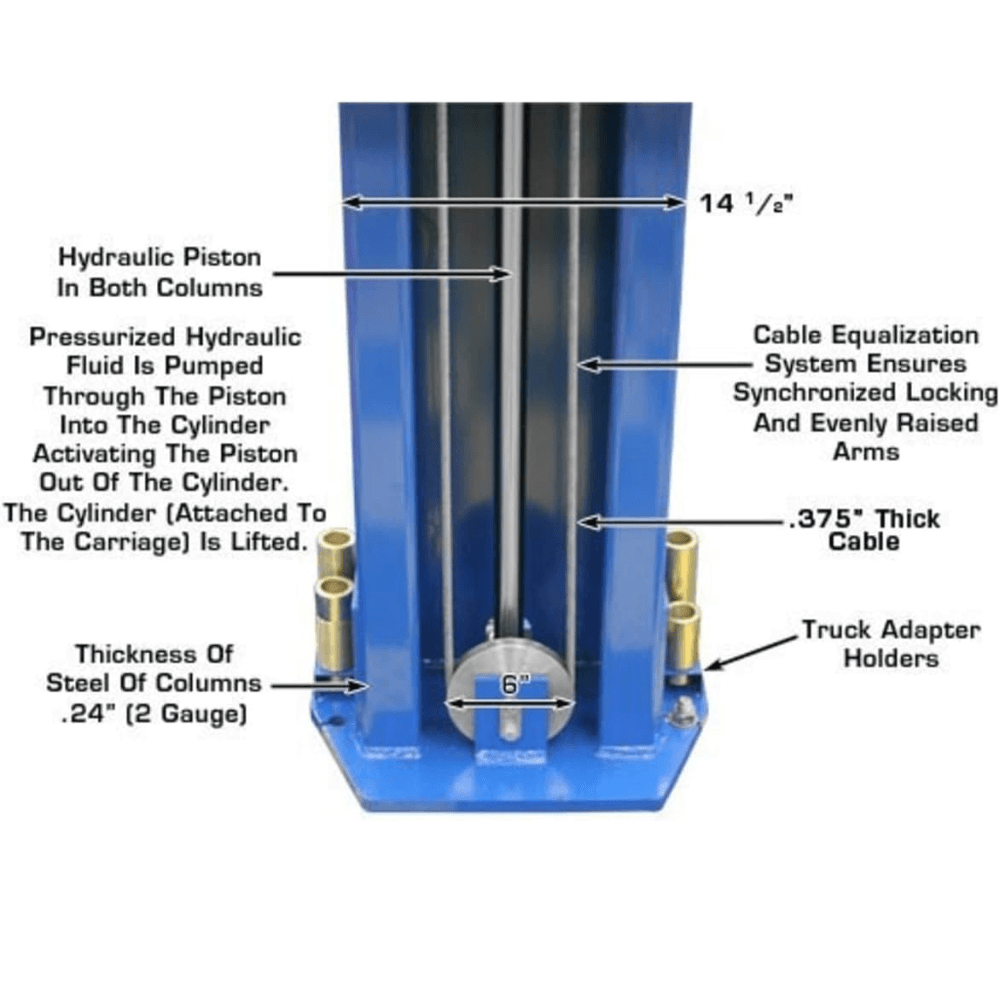

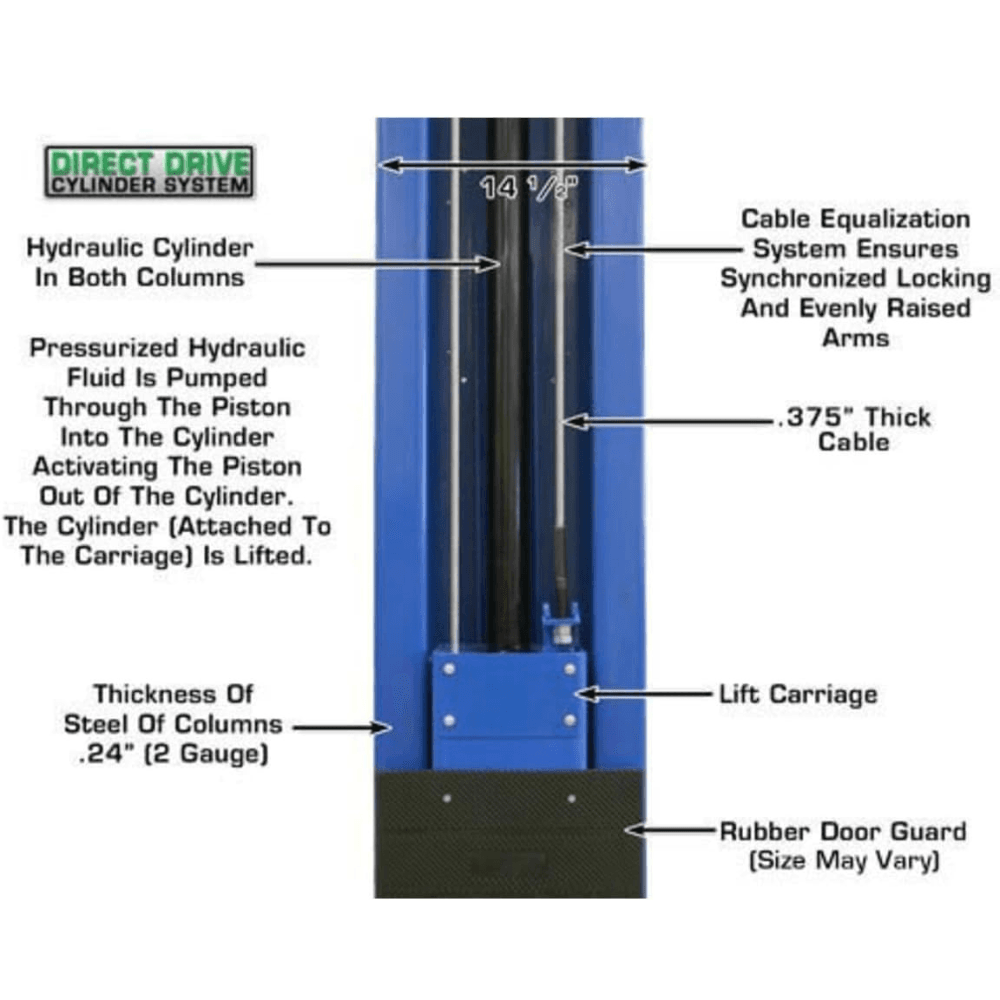

- Direct-Drive Cylinders – Ensures smoother, more efficient lifting with fewer maintenance needs.
- Powder Coat Finish – Enhances durability and corrosion resistance.
- Free 12-Piece Truck Adapter Set – Expands lifting capabilities for various vehicle types.
- Mounting Hardware Included – Provides everything needed for secure installation.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 15,000 lbs. |
| Overall Height (Standard Settings) | 165″ (13′ 9″) or 177″ (14′ 9″) |
| Special Height Setting | 150″ (12′ 6″) (Requires Extra Cables) |
| Overall Floor Width | 150 3/4″ (12′ 6 3/4″) |
| Outside Column Width | 139 1/8″ (11′ 7 1/8″) |
| Inside Column Width | 123 1/2″ (10′ 3 1/2″) |
| Drive-Thru Clearance | 109 1/2″ (9′ 1 1/2″) |
| Maximum Lift Height (Without Adapters) | 72 1/4″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Pad Height | 7 1/4″ |
| Column Size | 7 1/2″ x 14 1/2″ |

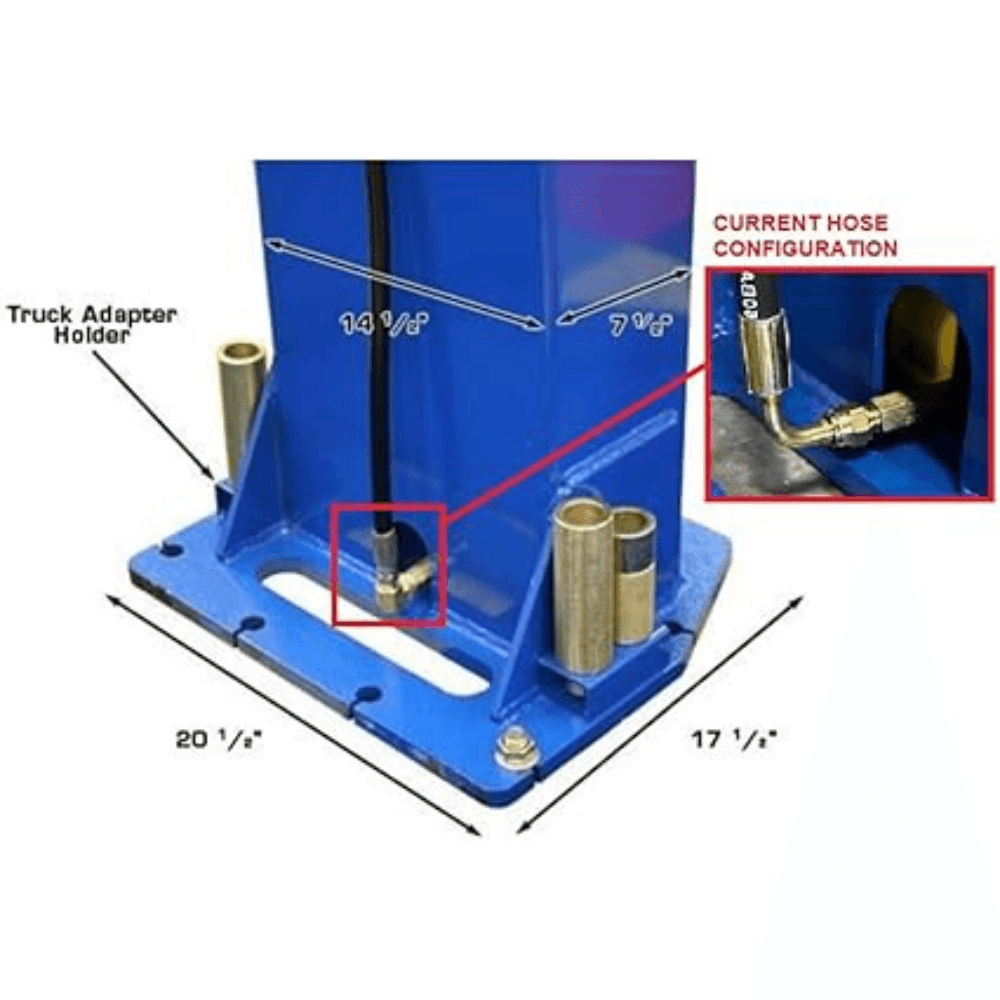

| Base of Column | 17 1/2″ x 20 1/2″ |
| Column Steel Thickness | 6mm |
| Arm Steel Thickness | 6mm |
| Motor / Electrical Requirement | 220V Single Phase, 30 Amp Breaker Required |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |
| Shipping Weight | 2,490 lbs. |
| Adapter Heights | 4 Each: 1.25″, 2.5″, 5″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
Installation Requirements
- Minimum 6″ thick, 3,000 psi concrete foundation.
- 13’7″ ceiling clearance required at lowest setting.
Why Choose the Atlas 15000 LB Overhead Two-Post Lift?
The Atlas 15000 LB is an excellent choice for commercial repair shops that need a durable, high-capacity two-post lift. Its extra tall and extra wide design, symmetric arms, and direct-drive hydraulic system provide exceptional lifting power and safety.
For heavy-duty vehicle maintenance, fleet servicing, and professional-grade lifting, the Atlas 15000 LB Overhead Two-Post Lift is the ideal solution!
